Calrec Hydra2 Multimode SFP

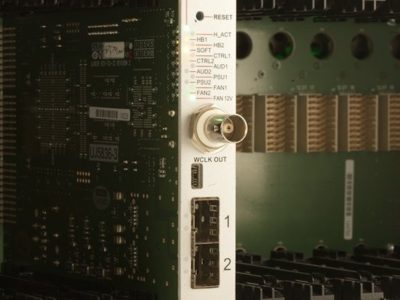

Optical SFP modules for fiber
connectivity can be used for console
to processing rack, router to router,
and router to I/O connections.
The core within multimode fiber is
relatively thick. WhenLight travels through
multimode fiber at multiple angles,
“bouncing” off the sides of the core as it
travels through it, taking multiple paths
or “modes” of varying length from one
end to the other, resulting in pulses being
lengthened as they travel.

SFP type Connector Power Budget Fiber type Max Distance
SX Multimode LC Duplex 7.5dB 62.5/125µm 275m
50/125µm 550m
